Introduction to Enameled Copper-Clad Aluminum Wire

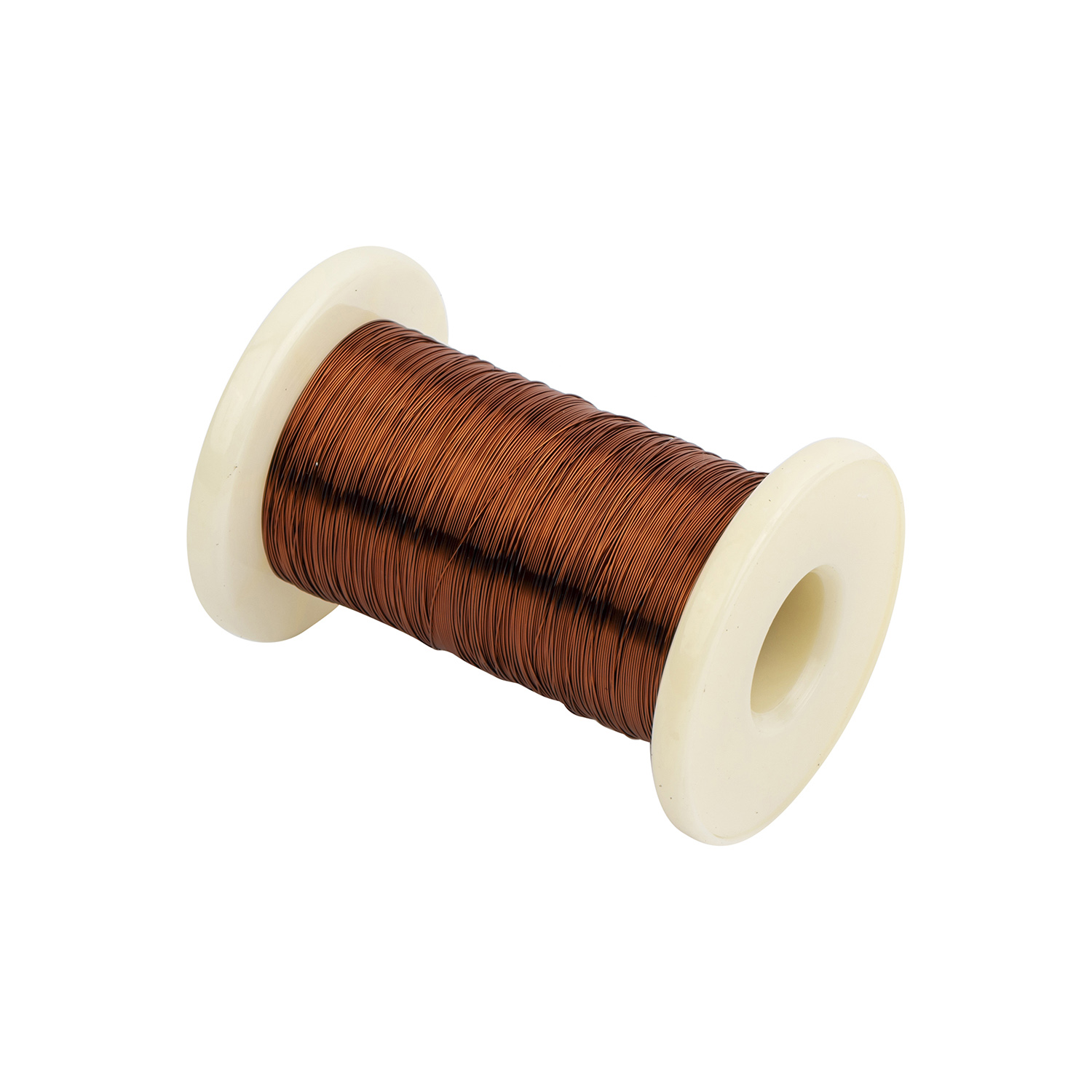

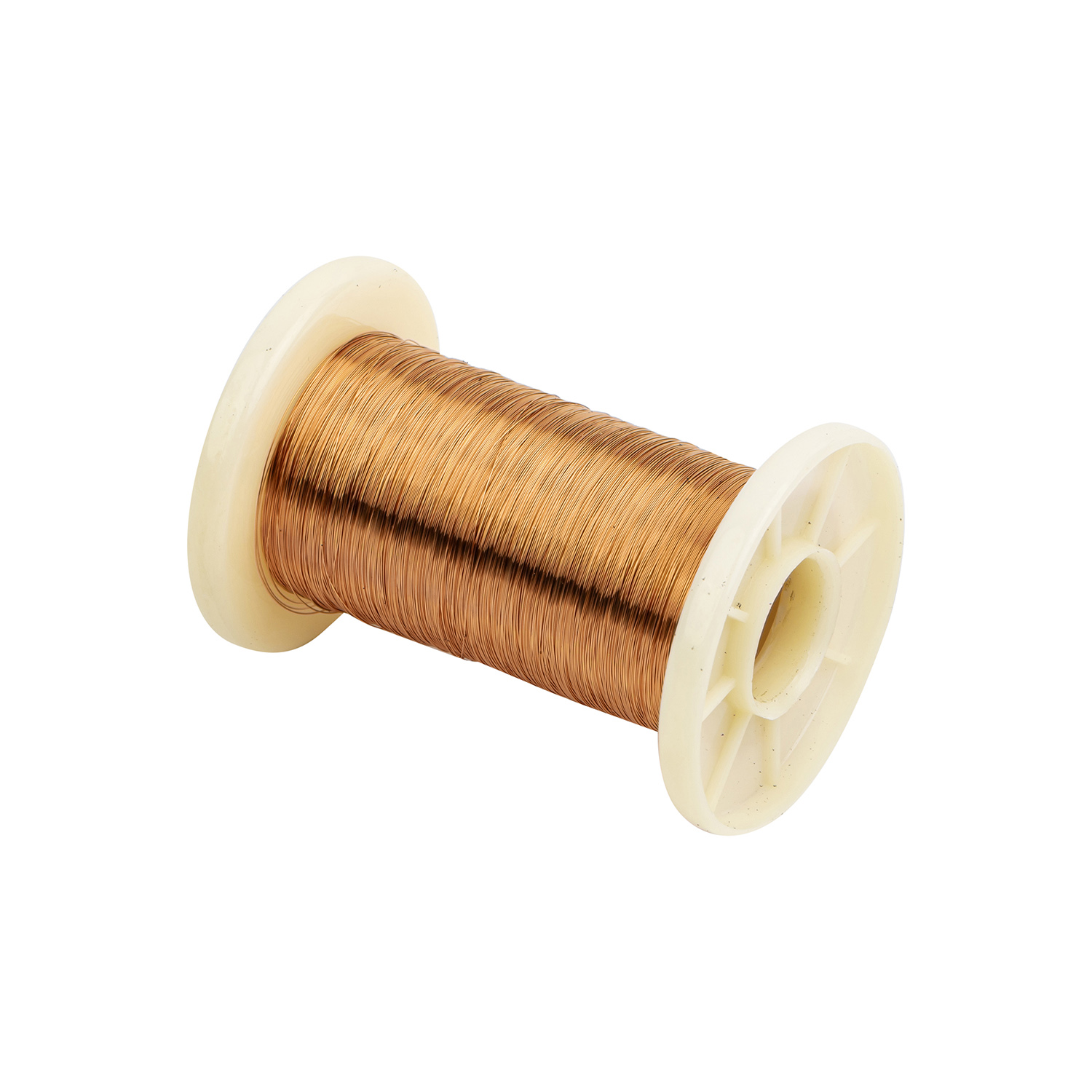

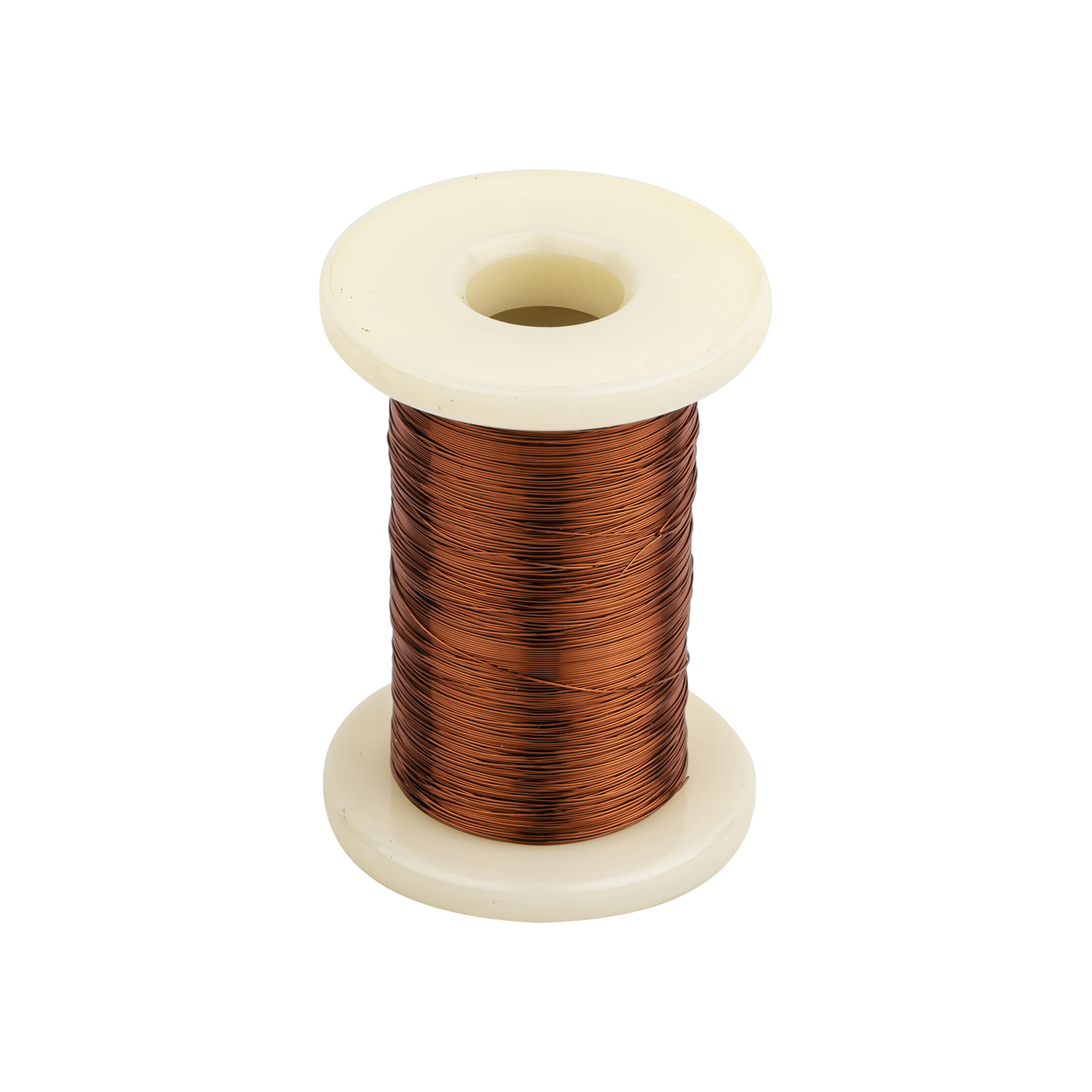

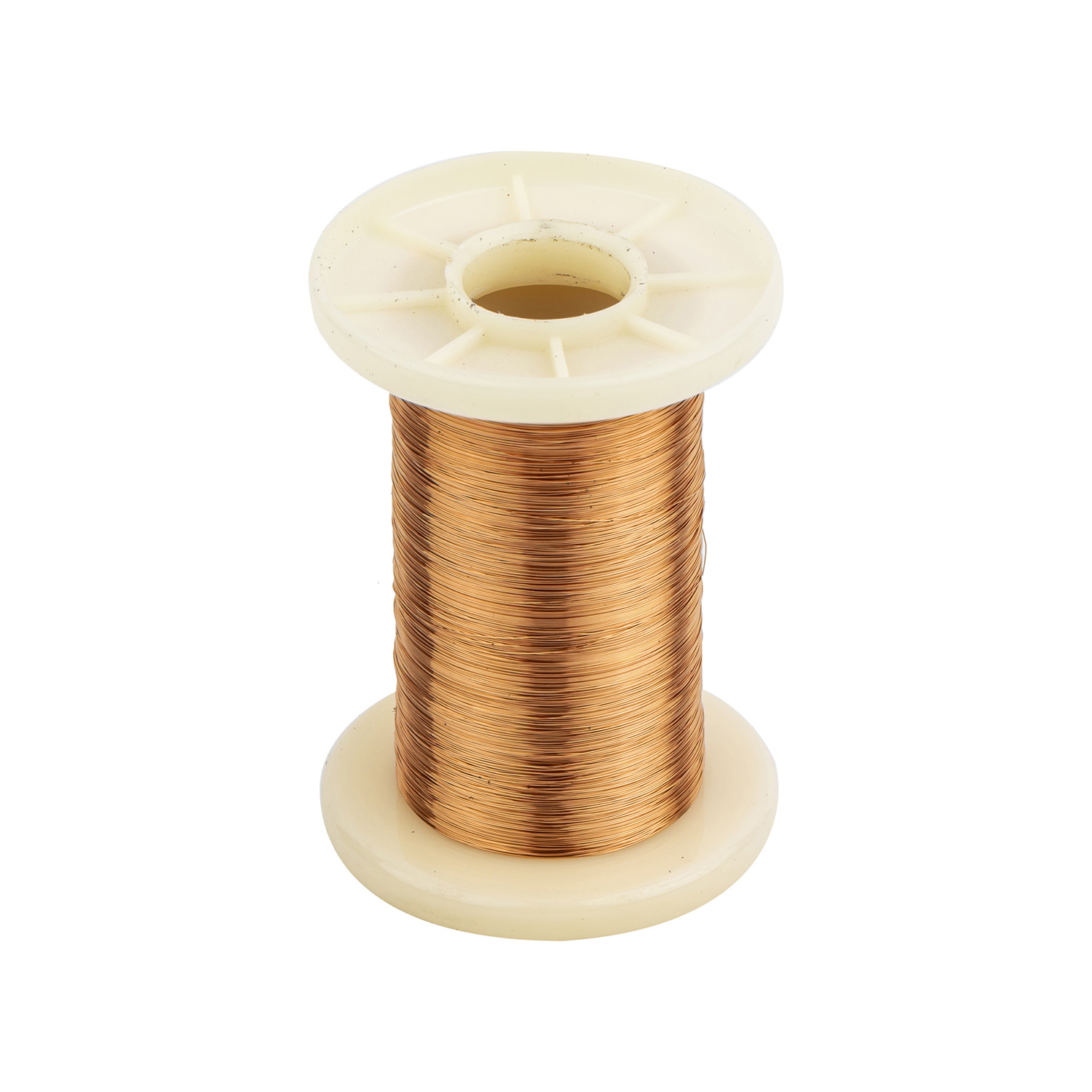

Enameled Copper-Clad Aluminum (ECCA) wire is a composite winding wire that integrates the superior electrical conductivity of copper and the lightweight advantage of aluminum. It adopts a copper-clad aluminum composite conductor with a uniform high-performance enamel insulation layer on the surface, balancing the mechanical and electrical properties of pure copper wire and pure aluminum wire. Its core characteristics and main applications are detailed as follows:
Characteristic
1. Optimized Electrical Conductivity & Stable Resistivity
The ECCA wire features a tightly bonded copper-aluminum composite structure. The outer copper layer ensures excellent electrical conductivity close to pure copper wire and reliable solderability, solving the poor welding defect of pure aluminum wire. Its DC resistivity is moderately stable, maintaining consistent electrical transmission efficiency under normal operating conditions. Compared with pure aluminum wire, it effectively reduces current loss and ensures stable circuit operation, meeting the basic electrical requirements of most winding and inductive devices.
With a density of only 3.63 g/cm³, the weight of ECCA wire is about 1/2 to 1/3 of pure copper wire at the same wire diameter and resistance specification. This lightweight feature greatly reduces the overall weight and structural load of coils and electronic equipment. Meanwhile, it lowers raw material costs while retaining core conductive performance, delivering outstanding cost-performance advantages for mass production and industrial applications compared with traditional pure copper enameled wires.
3. Good Mechanical & Insulation Reliability
The wire has moderate tensile strength and excellent ductility, stronger than pure aluminum wire, enabling it to adapt to various precision winding processes without easy breakage or deformation. The outer high-quality enamel coating provides reliable insulation, wear resistance and chemical corrosion resistance. It features good weather resistance and structural stability during long-term operation, effectively extending the service life of electrical equipment and adapting to conventional medium and low-temperature working environments.
4. Excellent Process Adaptability
Benefiting from the composite conductor structure and smooth enamel surface, ECCA wire supports fine winding, automated coil winding and forming processes. It can be easily processed into miniature coils, dense windings and various customized winding structures. Its stable solderability simplifies welding and assembly procedures, greatly improving production efficiency for electronic and electrical manufacturing.
Main Purpose
1. Consumer Electronics & Audio Equipment
It is widely applied in speaker coils, headphone coils, audio frequency inductors and other audio devices. The wire ensures stable signal transmission, reduces audio signal loss, and delivers excellent sound restoration effect. Its lightweight property also helps reduce the weight of portable audio equipment, making it the preferred winding material for high-cost-performance audio electronic components.
2. Household Appliance Motors & Small Electrical Devices
ECCA wire is commonly used in windings of small and medium-sized household appliance motors, including fan motors, water pump motors, washing machine drive motors, air conditioner auxiliary motors and microwave oven components. It meets the continuous operation requirements of household appliances, reduces equipment weight and manufacturing costs, and maintains stable mechanical and electrical performance in daily working scenarios.
3. Industrial Electronic Components & Power Equipment
It is suitable for various inductors, electromagnetic coils, transformer windings, rectifiers and charger coils in industrial and civil power systems. It works stably in medium and low-frequency power conversion and electromagnetic induction scenarios, effectively reducing the overall weight of power equipment. Additionally, it is widely used in precision electronic devices such as display deflection coils and demagnetizing coils, ensuring stable and efficient operation of electronic circuits.
Summarize
Enameled Copper-Clad Aluminum wire combines the high conductivity and good solderability of copper with the lightweight and low-cost advantages of aluminum. With reliable insulation performance, excellent process adaptability and high cost performance, it has become an ideal alternative to traditional pure copper enameled wire, and is widely used in consumer electronics, household appliances and general industrial power equipment.
